Home Products IS clean water pump

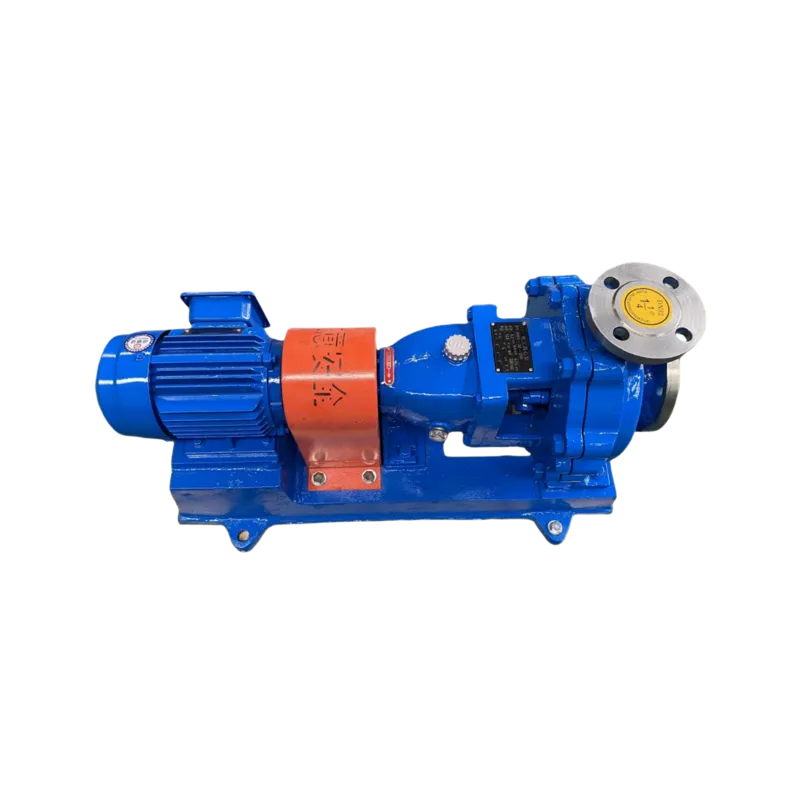

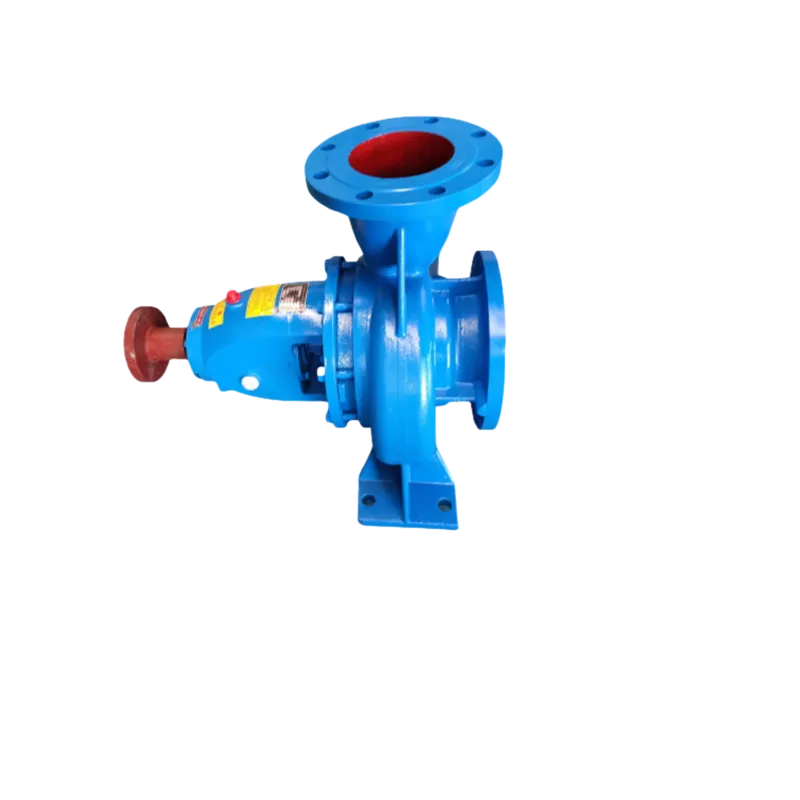

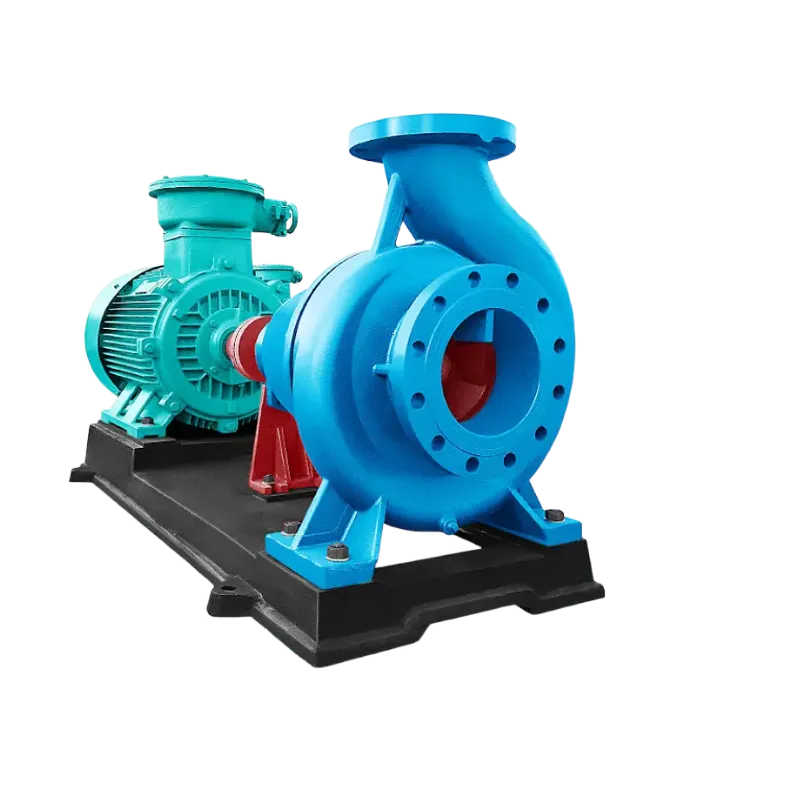

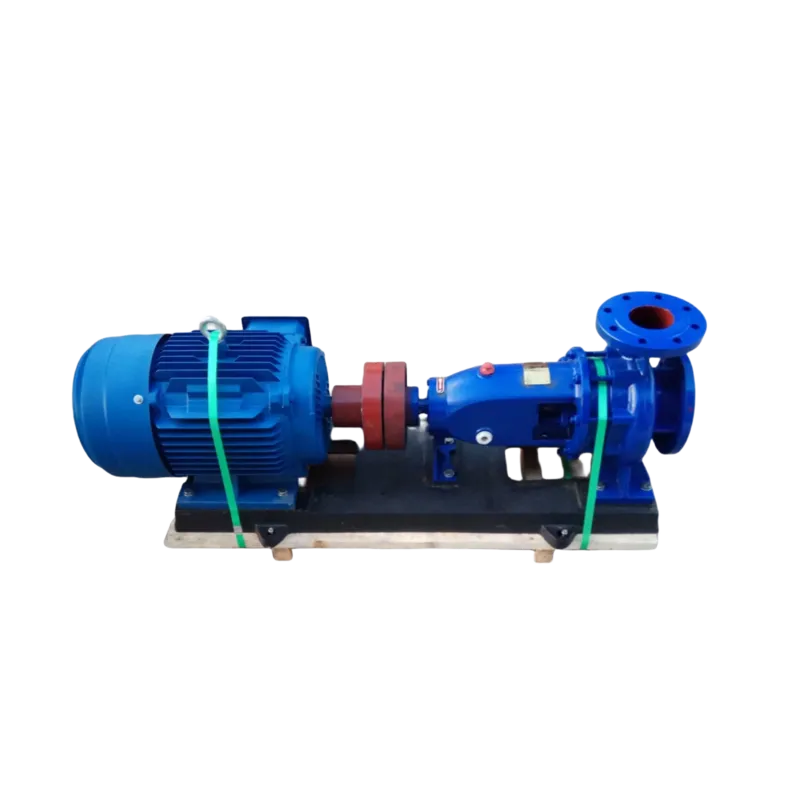

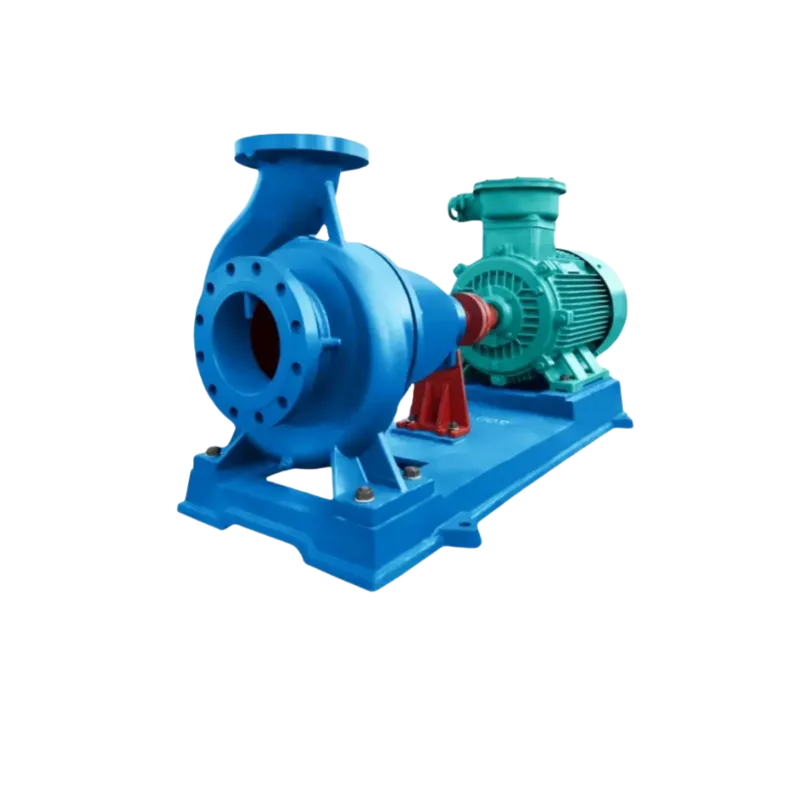

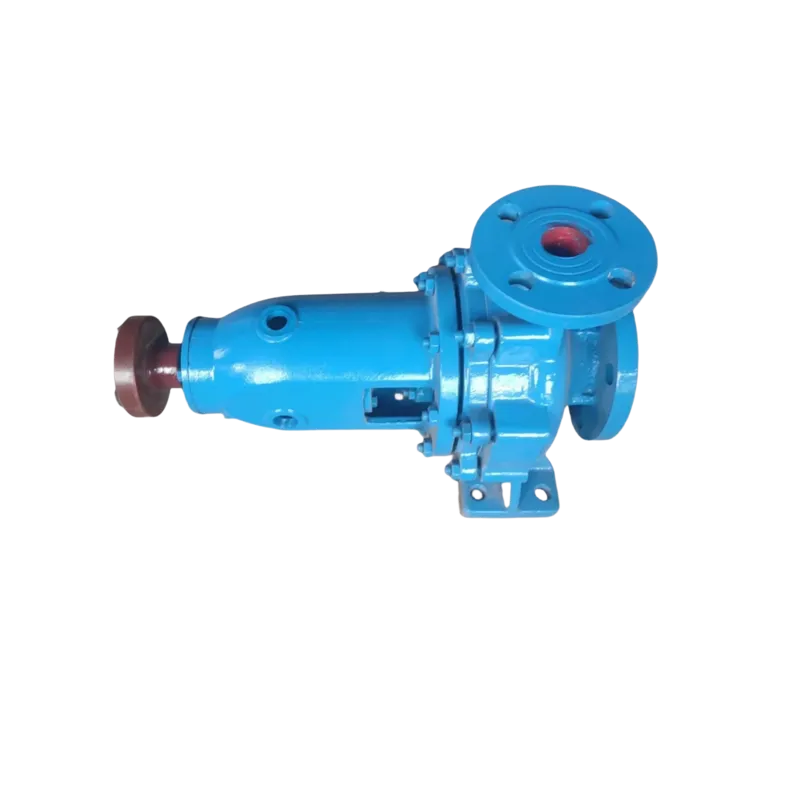

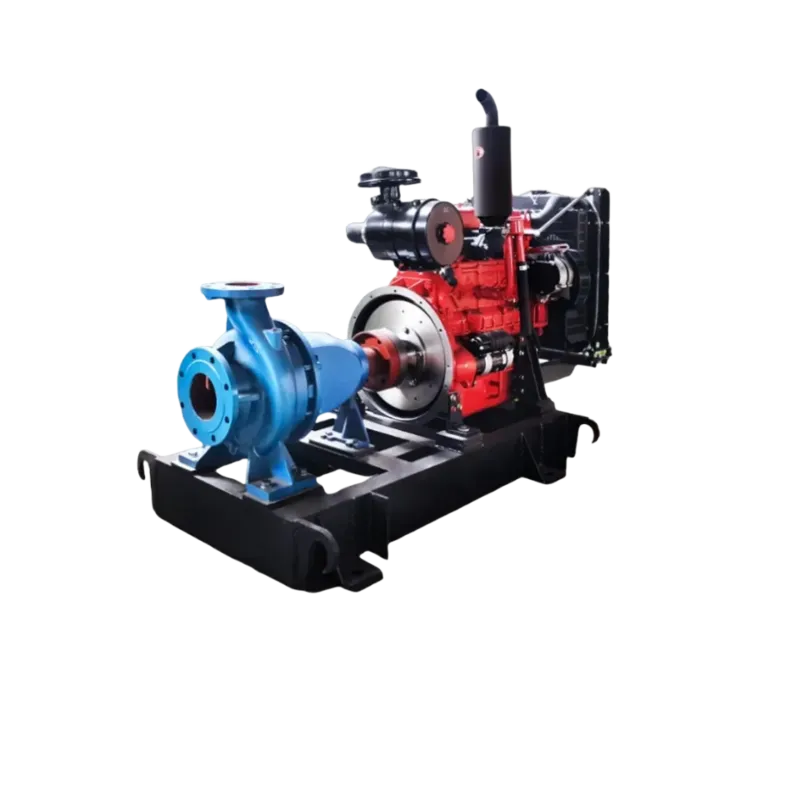

IS clean water pump

The IS clean water pump is a single-stage, single-suction, horizontal centrifugal pump designed according to the international standard ISO2858. It is an energy-saving and updated product. It is suitable for conveying clean water and similar liquids below 80°C, covering industrial, agricultural, and urban water supply and drainage applications.

Product e-details

Other Product

We provide scientific pump selection based on actual working conditions (e.g., flow, head) and offer personalized customization of product appearance and color.

Get a Quote

Product Introduction

The IR hot water centrifugal pump is an energy-saving product derived from the IS series single-stage pump. This series features a rational design and easy installation and maintenance. It is suitable for conveying clean water below 150°C and media with similar physical and chemical properties. With a suction pressure of no more than 0.8 MPa, the pump can be used in conjunction with hot water boilers and heat exchangers, serving as a circulating water pump, a water feed pump, and other water transfer pumps, such as municipal water supply and mine drainage.

Model Description Diagram

Product Parameters

model	Flow rate (m³/h)	Lift (m)	Speed (r/min)	Required NPSH (m)	efficiency(%)	Shaft power (kw)	Matching motor		Weight (kg)	Pump dimensions (length × width × height) (mm)	Diameter (mm)
model	Flow rate (m³/h)	Lift (m)	Speed (r/min)	Required NPSH (m)	efficiency(%)	Shaft power (kw)	Power (kw)	Specification	Weight (kg)	Pump dimensions (length × width × height) (mm)	Inhalation	spit out
50—32—125	7.5 12.5 15	22 20 18.5	2900	2.0 2.0 2.5	47 60 60	0.96 1.13 1.26	2.2	Y90L - 2	34	465×190×252	50	32
50—32—125	3.8 6.3 7.5	5.4 5.0 4.6	1450	2.0 2.0 2.5	43 54 55	0.13 0.16 0.17	0.55	Y80₁ - 4	34	465×190×252	50	32
50—32—125A	6.7 11.2 13.5	17.5 16 14.7	2900	2.0 2.0 2.5	45 58 58	0.71 0.84 0.93	1.5	Y90S - 2	33	465×190×252	50	32
50—32—125A	3.4 5.6 6.7	4.3 4.0 3.7	1450	2.0 2.0 2.5	41 52 53	0.10 0.12 0.13	0.55	Y80₁ - 4	33	465×190×252	50	32
50—32—160	7.5 12.5 15	34.3 32 29.6	2900	2.0 2.0 2.5	44 54 56	1.59 2.02 2.16	3	Y100L - 2	39	465×190×292	50	32
50—32—160	3.8 6.3 7.5	8.5 8.0 7.5	1450	2.0 2.0 2.5	35 48 49	0.25 0.29 0.31	0.55	Y80₁ - 4	33	465×190×292	50	32

Core Structural Features

is the core structure of the clean water pump

Rear door split design
The pump body and pump cover are separated from the back of the impeller. During maintenance, there is no need to remove the pipeline and motor, only the rotor components need to be removed.

Modular core components

It consists of a pump body, impeller, shaft, etc. The suspension bearing components support the rotor and bear radial and axial forces.

Multiple sealing protection

Equipped with packing or mechanical seal, the shaft sleeve protects the shaft body, and the axial force is balanced through the balance hole and sealing ring.

Performance Advantages

High efficiency and energy saving

The hydraulic model is advanced and the efficiency reaches international standards. It is an energy-saving pump product promoted by the country.

Stable operation

The components are highly versatile, with excellent dynamic and static balance, smooth operation and low noise, and good anti-cavitation performance.

Wide adaptability

1. 29 basic models can be derived into 153 performance levels, covering calibers from 50-200mm, adapting to the selection needs of various scenarios.
