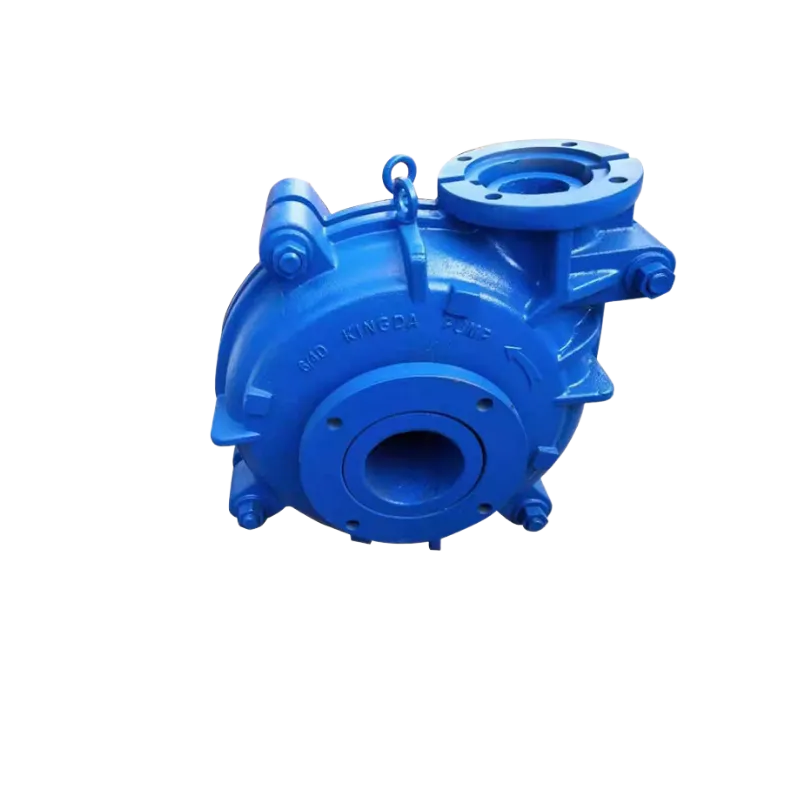

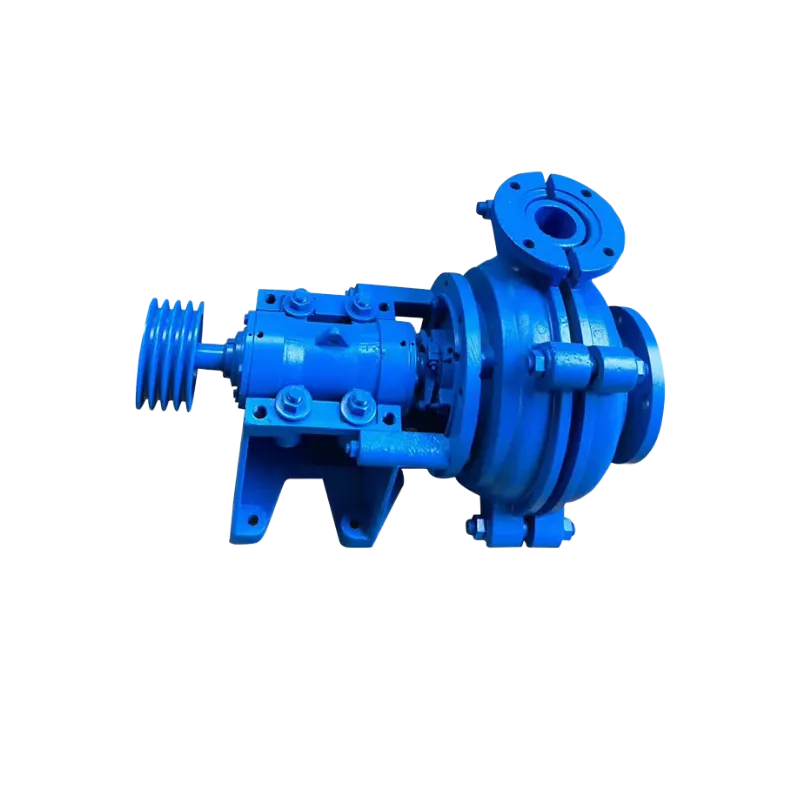

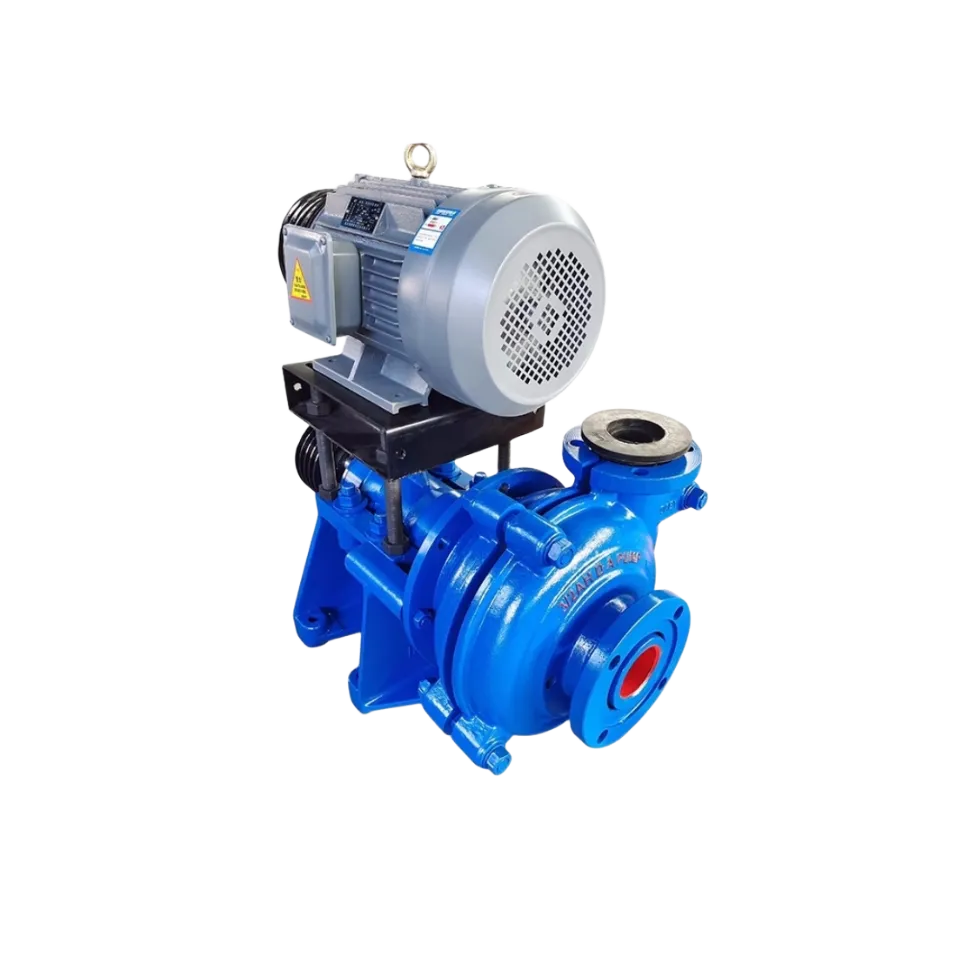

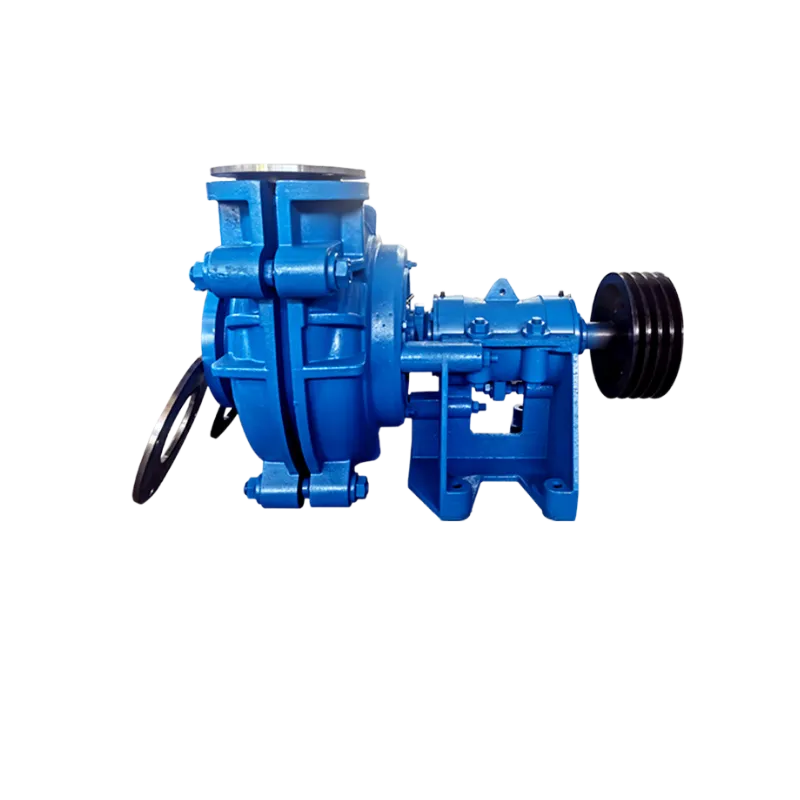

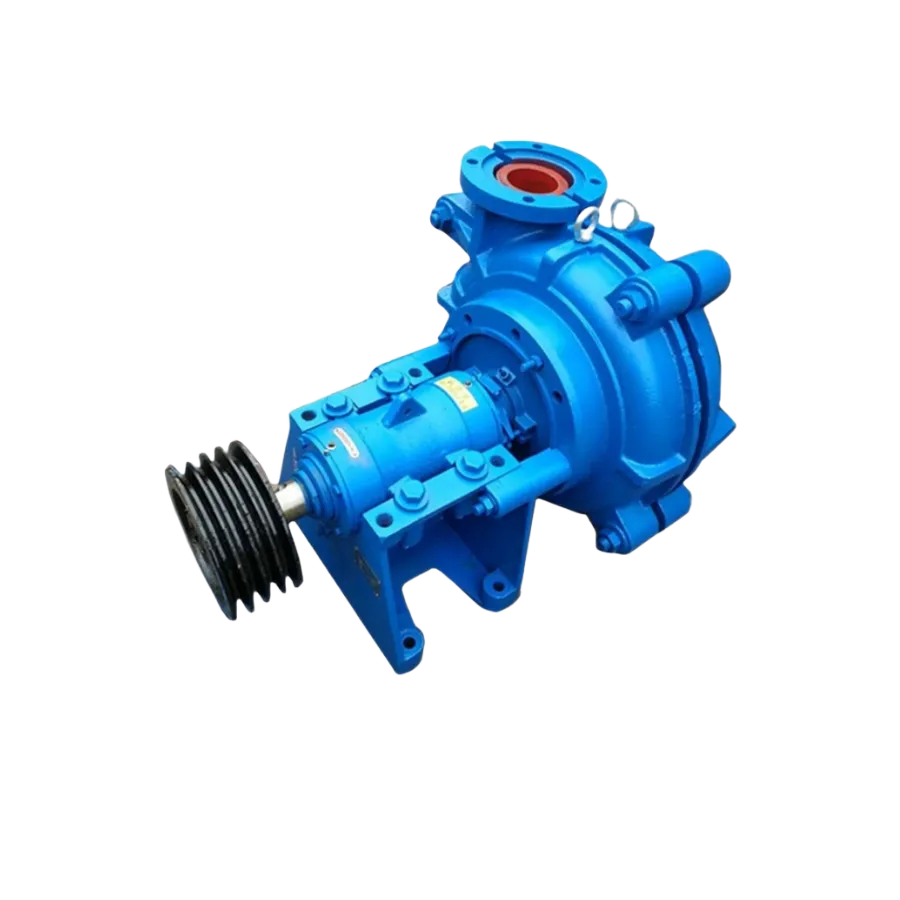

Fractional slurry pump

The fractional slurry pump is a slurry conveying equipment specially designed for low flow and high head working conditions. Its core positioning is the precise conveying of slurry containing solid particles.

Product e-details

Other Product

We provide scientific pump selection based on actual working conditions (e.g., flow, head) and offer personalized customization of product appearance and color.

Get a Quote

Product Introduction

The Fractional Slurry Pump is a slurry conveying device specifically designed for low-flow, high-lift applications. Its core focus is the precise conveying of slurries containing solid particles. Its design is fully adapted for demanding applications in mining, metallurgy, and chemical industries, where flow control and lift requirements are stringent. It efficiently handles the conveying needs of various solid-laden slurries, providing a stable solution for critical slurry handling processes in industrial production.

Core Structural Features

Core structure of fractional slurry pump

Compact overall design
The horizontal single-stage single-suction structure layout minimizes the equipment volume while ensuring conveying performance. It has the advantage of "small space adaptability" and can be flexibly installed in narrow working areas in the factory, reducing site occupation costs and simplifying installation and layout difficulties.

Highly wear-resistant flow components

1. Key components that come into direct contact with the slurry, such as the impeller and pump body, are all cast from high-hardness, wear-resistant alloys. At the same time, the internal flow channel curve is optimized for low-flow operating conditions to reduce the retention and erosion of slurry particles in the flow channel, significantly extending the service life of flow-passing components and reducing equipment maintenance frequency.

Leak-proof and anti-blocking sealing system

Two configurations are available: mechanical seal and packing seal to meet the sealing requirements of different working conditions. The anti-blocking design incorporated into the sealing structure can effectively prevent solid particles in the slurry from entering the sealing surface, avoiding seal failure caused by particle obstruction, ensuring long-term stable operation of the sealing system, and reducing slurry leakage failures.

Performance Advantages

Low flow and high lift precision adaptation

1. To address the efficiency degradation of conventional slurry pumps under low-flow conditions, a customized hydraulic model design enables stable adaptation to low-flow scenarios (less than 50 m³/h) while meeting high-lift conveying requirements. It maintains excellent operating efficiency even in low-flow operations, thus avoiding energy waste.

Strong anti-wear and anti-clogging capabilities

Wear-resistant alloy components and optimized flow channels form a "double protection" that can not only withstand the continuous erosion of high-concentration slurry and reduce the wear rate of components, but also reduce the risk of particle accumulation and blockage in the flow channel. It is especially suitable for conveying complex slurries containing coarse particles and high concentrations, thereby improving the reliability of equipment operation.

Efficient and stable operation performance

The hydraulic design is highly compatible with low-flow operating conditions, resulting in low energy consumption and high efficiency during operation. At the same time, the overall vibration amplitude of the equipment is small, the operating noise is low, and the structural stability is strong, which can meet the needs of 24-hour continuous operation in industrial production, reduce production interruptions caused by equipment failures, and ensure operational continuity.
