Mixed flow pump

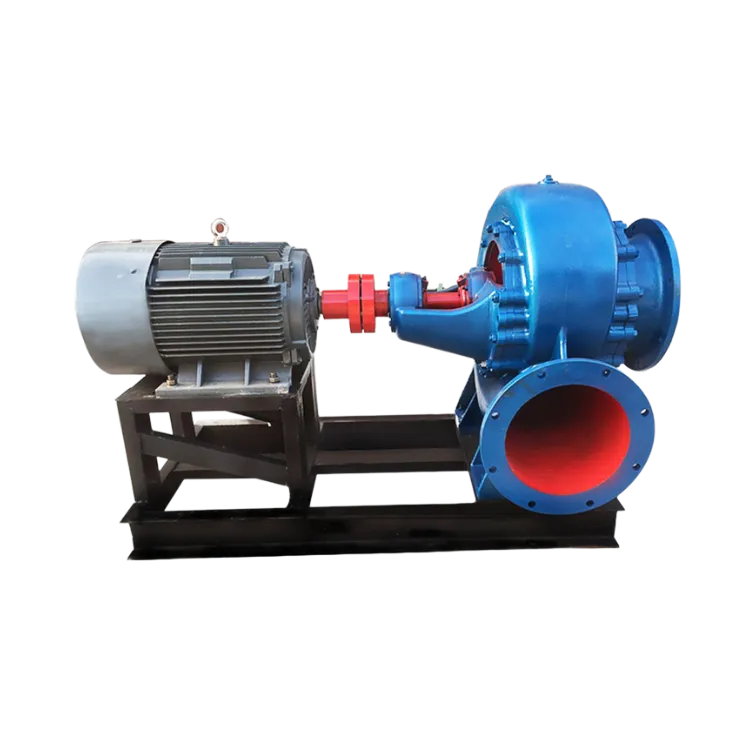

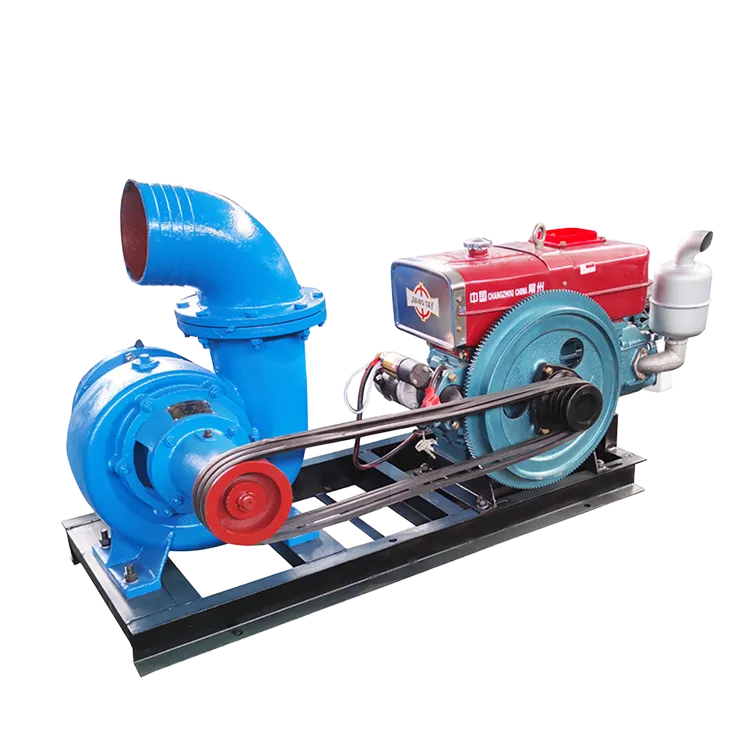

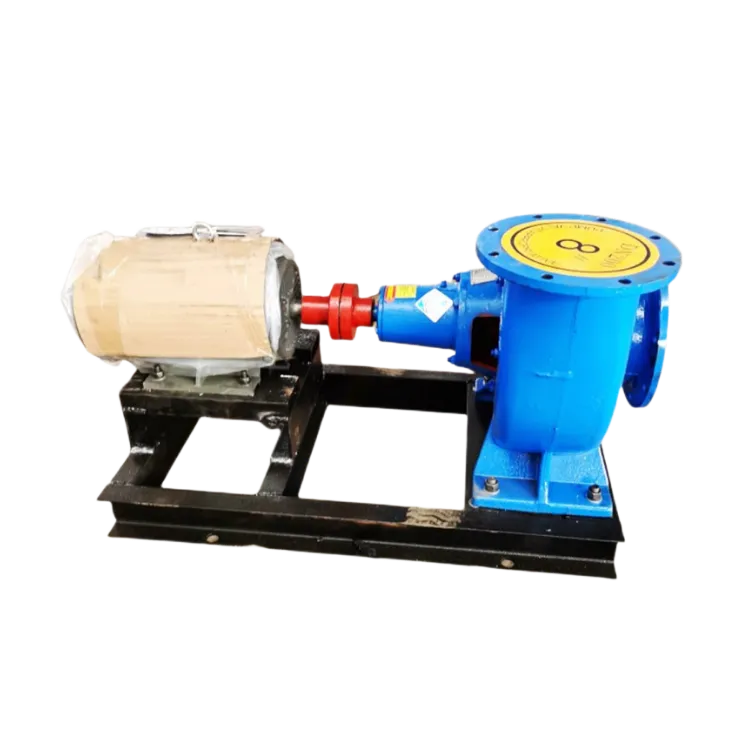

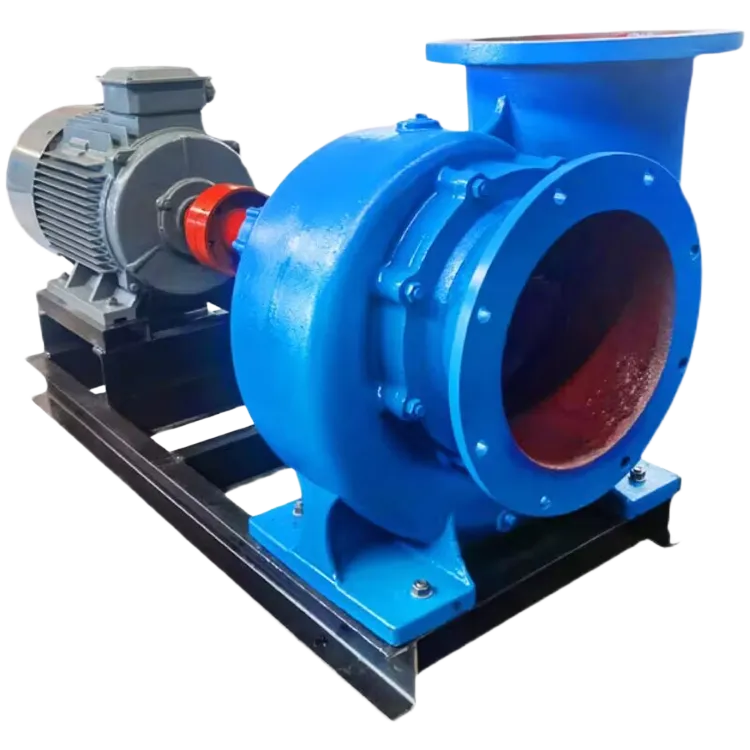

The mixed flow pump is a horizontal, single-stage, single-suction, volute type mixed flow pump.

Product e-details

The mixed flow pump is a horizontal, single-stage, single-suction, volute type mixed flow pump.

Product e-details

Other Product

We provide scientific pump selection based on actual working conditions (e.g., flow, head) and offer personalized customization of product appearance and color.

Get a Quote

Product Introduction

Mixed flow pumps are horizontal, single-stage, single-suction, volute-type mixed flow pumps. They are suitable for conveying clean water or other liquids with physical or chemical properties similar to water. The temperature of the conveyed liquid should not exceed 50°C. They are widely used in various applications, including farmland irrigation, industrial and urban water supply and drainage.

Model Description Diagram

Take 100HW-8S as an example

100--Pump inlet and outlet diameters (mm)

HW--Horizontal volute mixed flow pump

8--Design head, m.
S--Variant code

Core Structural Features

Mixed flow pump core structure

Rear door split design
The pump cover connects to the pump body and the water inlet pipe, respectively. There should be an appropriate gap between the pump cover and the impeller. Too little clearance will cause friction; too much clearance will cause a large amount of pressurized water to flow back from the pump body, reducing pump efficiency. The ideal clearance is 0.3-0.7mm (when the pump shaft is pushed toward the pump inlet). This can be adjusted by increasing or decreasing the thickness of the paper pad.

Modular core components

HW type pump is mainly composed of pump cover, impeller, pump body, pump shaft, shaft sleeve and bearing body (diameter <350mm) or bearing frame (diameter >400mm) and other main parts.

Multiple sealing protection

The shaft seal consists of packing, packing gland, packing ring and stuffing box on the pump body (100HW, 1S0HW and 200HW pumps do not have packing ring). Its function is to prevent air from being sucked into the pump and to prevent excessive water from flowing out along the shaft.

Performance Advantages

High efficiency and energy saving

The hydraulic model is advanced and the efficiency reaches international standards. It is an energy-saving pump product promoted by the country.

Stable operation

The components are highly versatile, with excellent dynamic and static balance, smooth operation and low noise, and good anti-cavitation performance.

Wide adaptability

1. 29 basic models can be derived into 153 performance levels, covering calibers from 50-200mm, adapting to the selection needs of various scenarios.
